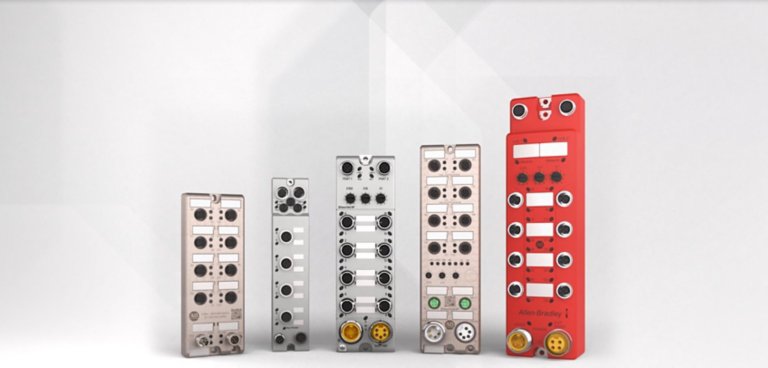

Our Bulletin 1732D and 1732E ArmorBlock® I/O modules provide low-cost, hardened, I/O suitable for on-machine use. You can mount these modules on a machine close to the sensors and actuators to provide shorter cable runs for automotive, material handling, and high-speed packaging applications. These modules are available for DeviceNet® and EtherNet/IP™ networks and are suitable for use in welding applications and end-of-arm robot applications.
- Product Selection
- Overview
- Documentation
Product Selection
Showing
1
-
1
of
0
Results
Overview
Overview
- Available with water- and corrosion-proof plastic and nickel-plated aluminum sealed housing
- Offers rating for IP69K and NEMA 4X (when marked) for use without an enclosure
- Includes LEDs for module and/or channel level alarms and diagnostics which can reduce machine downtime
- Provides efficient installation and replacement without having to rewire which can reduce wiring errors
- Includes Add-on Profiles in the Studio 5000 Logix Designer® application
1732D ArmorBlock DeviceNet I/O Blocks
- Offers 8 or 16 points per block
- Offers 1732DS ArmorBlock® Guard I/O™ modules for safety applications
- Includes network-powered I/O circuits on some blocks
1732E ArmorBlock EtherNet/IP I/O Blocks
- Includes slim and standard form factors
- Offers 4, 8, or 16 points per block
- Offers 1732ES ArmorBlock Guard I/O modules for safety applications
- Supports DLR topology and power daisy chain on selected modules
- Includes high-speed time-stamping inputs and scheduled output modules for demanding and high-speed applications
- Offers high accuracy and fast conversion rate analog modules
- Includes QuickConnect block with less than 250 ms power-up time for tool changer application
- Supports connection to IO-Link enabled devices with the IO-Link master module
1732D/E Armor WeldBlock I/O Blocks
- Resists the effects of weld slag and magnetic fields found in close proximity to weld heads
- Offers 16 points per block
- Includes QuickConnect block with less than 250 ms power-up time for tool changer application
Certifications
- cULus Listed
- CE Marked
- C-Tick
- EtherNet/IP
- ODVA
- Meets IP69K and IP67 with receptacle dust caps
You may also be interested in
Documentation
| Technical Specifications | Publication |
|---|---|
| Bulletin 1732 ArmorBlock I/O Modules Selection Guide | 1732-SG001_-EN-E |
| Product Profiles | Publication |
|---|---|
| ArmorBlock I/O Modules Product Profile | 1732-PP001_-EN-P |
